Tutorial 2: End-to-end Xenium lung data workflow

import os
import sys
sys.path.append(os.path.abspath("C://Users//heyi//Desktop/NicheMap-main"))
import nichemap as nm

base_dir = r"F:\spatial_data_lung\SSc_1_1_2_raw"
anno_file = r"F:\spatial_data_lung\ssc112_annotation_map.csv"
gene_list = r"F:\spatial_data_lung\marker_genes\ECM-gene.csv"
score_id = 'ECM_score'
peak_intensity=1.5
exp_intensity=1.0
sample_pref = 'SSc_1_1_2'
out_dir = rf"F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\{score_id}"
os.makedirs(out_dir, exist_ok=True)

adata = nm.preprocess.load_xenium_data(base_dir=base_dir, anno_file=anno_file)


model = nm.NicheMap(
    adata=adata,
    score_id=score_id,
    sample_prefix=sample_pref,
    out_dir=out_dir
)

final_adata = model.run(
    gene_list_csv=gene_list,
    bins=300,
    peak_intensity=peak_intensity,
    exp_intensity=exp_intensity
)

Loading expression matrix from: F:\spatial_data_lung\SSc_1_1_2_raw\cell_feature_matrix
Parsing spatial polygons from: F:\spatial_data_lung\SSc_1_1_2_raw\cells.zarr
Merging annotation file: F:\spatial_data_lung\ssc112_annotation_map.csv
Finished. Annotated cells: 82224
========== Starting NicheMap Pipeline: SSc_1_1_2 ==========

[ECM_score] Calculating gene signature score
[Score] ECM_score
Genes in CSV: 183
Valid genes: 17
Stored in adata.obs['ECM_score']

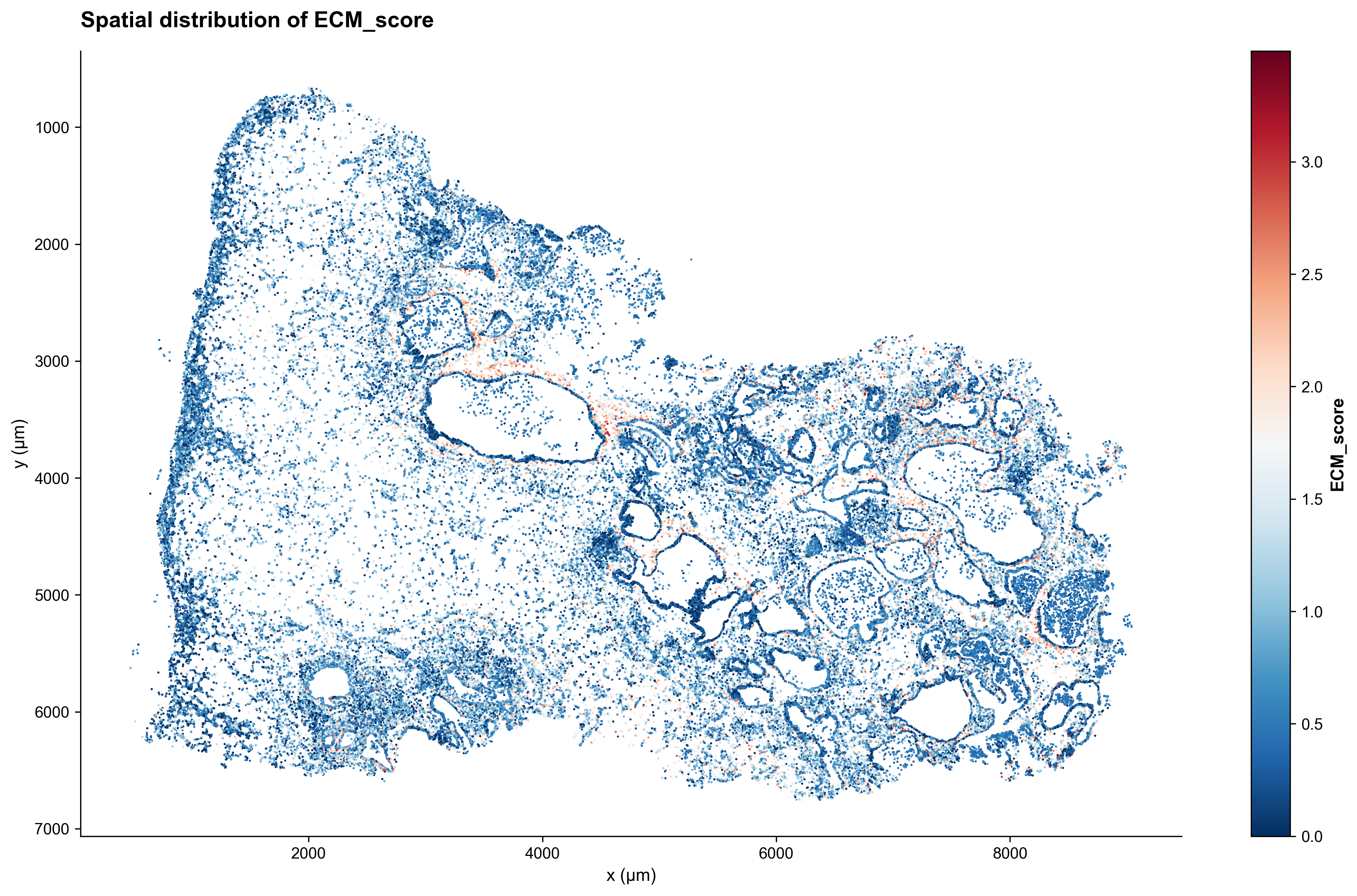

Figure saved to F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\ECM_score\Spatial_ECM_score.png
[ECM_score] Building spatial grids (bins=300, sigma_peak=2)
[Grid] ECM_score
Shape: (300, 300), Non-empty: 31560

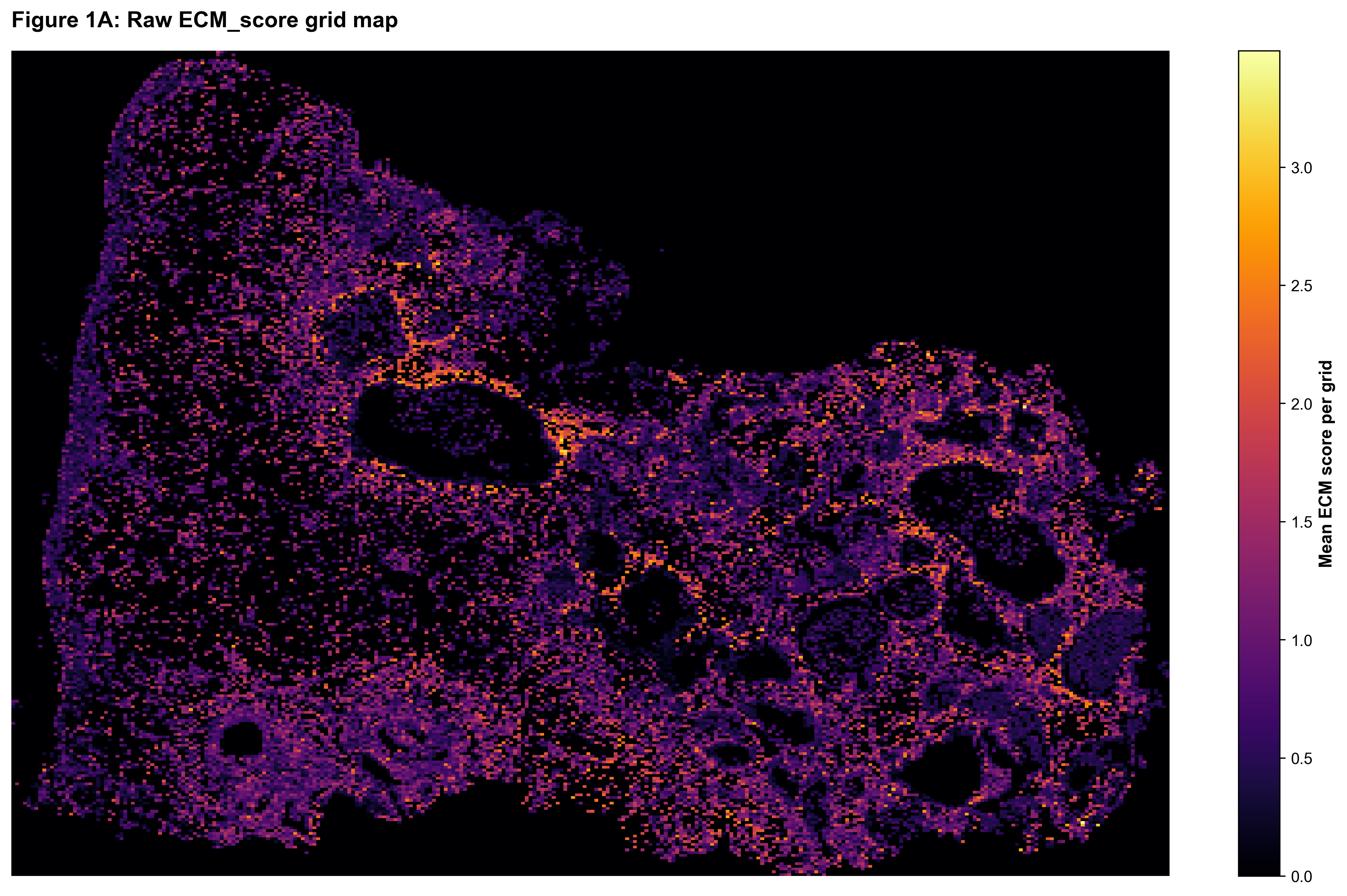

Figure saved to F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\ECM_score\Figure_1A_Raw_ECM_score_grid_map.png

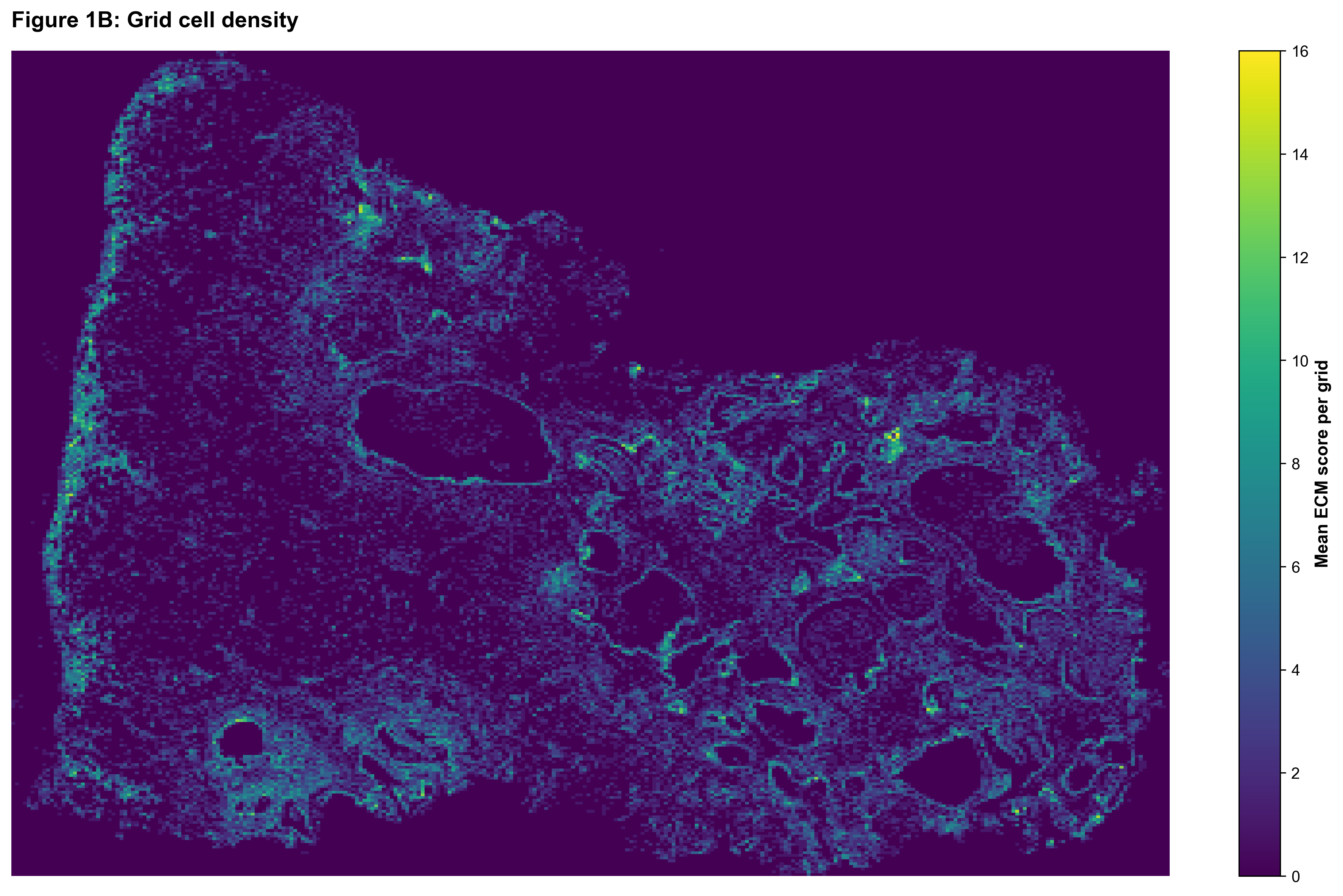

Figure saved to F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\ECM_score\Figure_1B_Grid_cell_density.png
[ECM_score] Finding niche seeds (intensity_sigma=1.5)

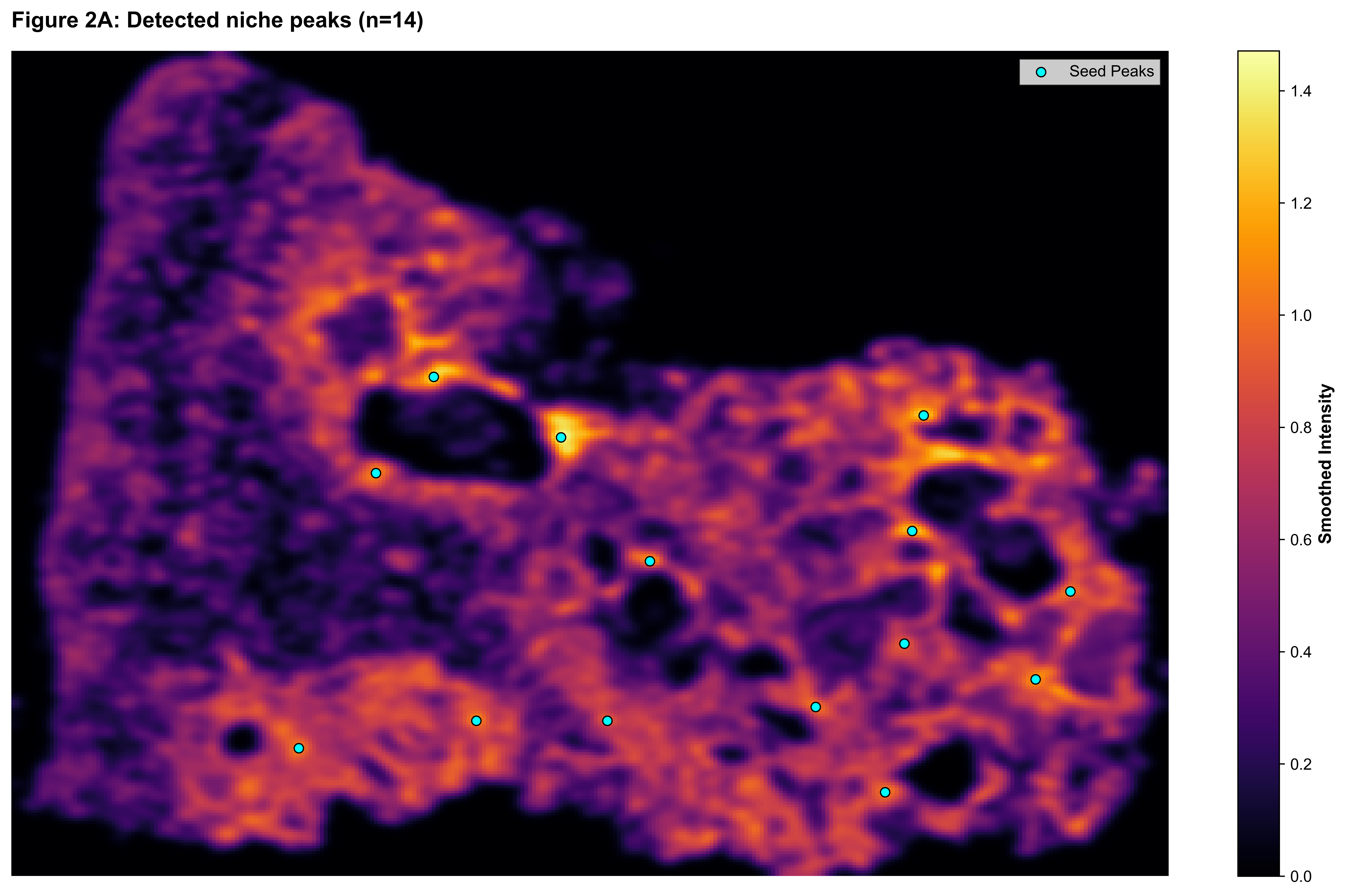

Figure saved to F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\ECM_score\Figure_2A_Detected_niche_peaks.png

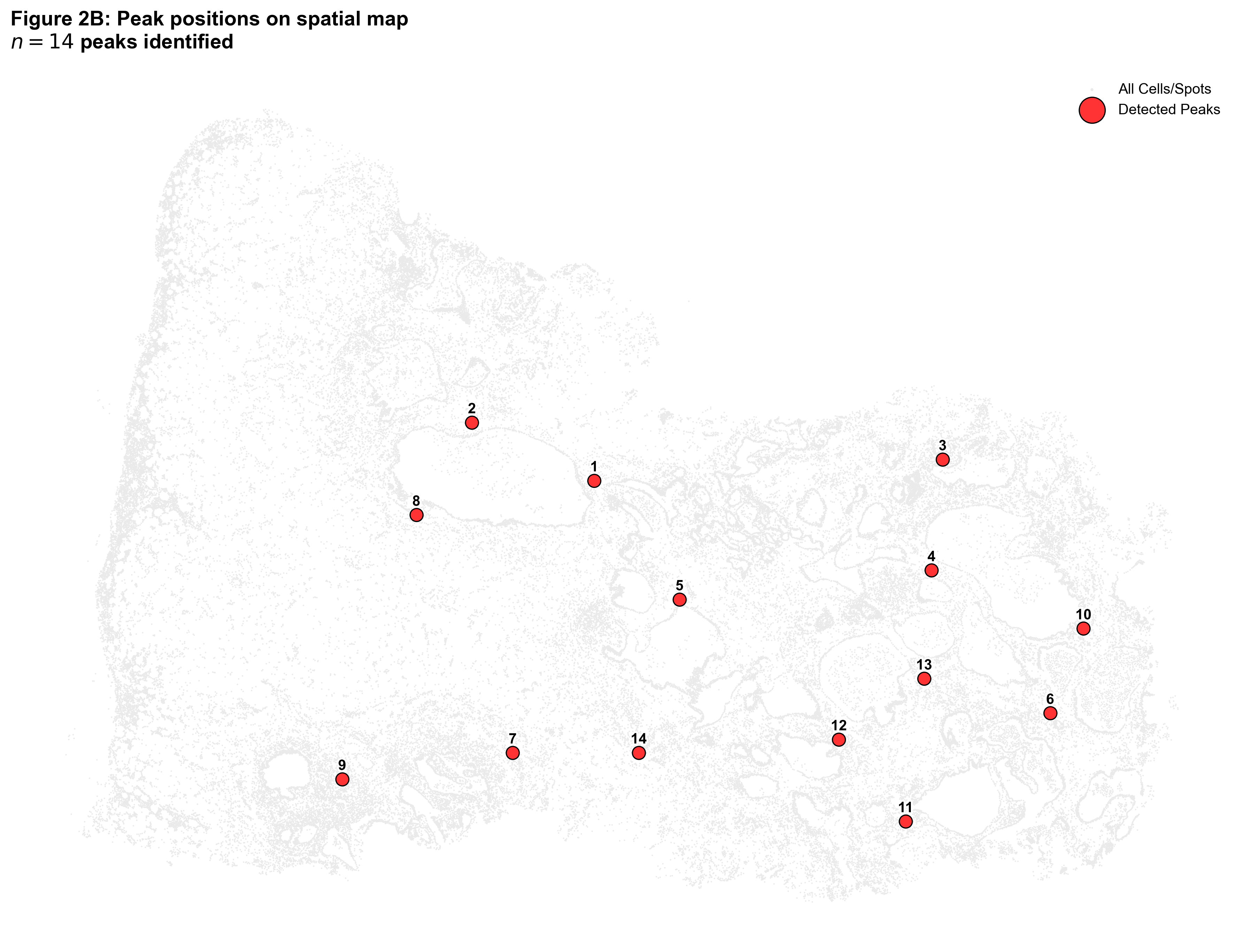

Figure saved to F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\ECM_score\Figure_2B_Peak_positions_on_spatial_map.png
[ECM_score] Segmenting niches (expansion_sigma=1.0)

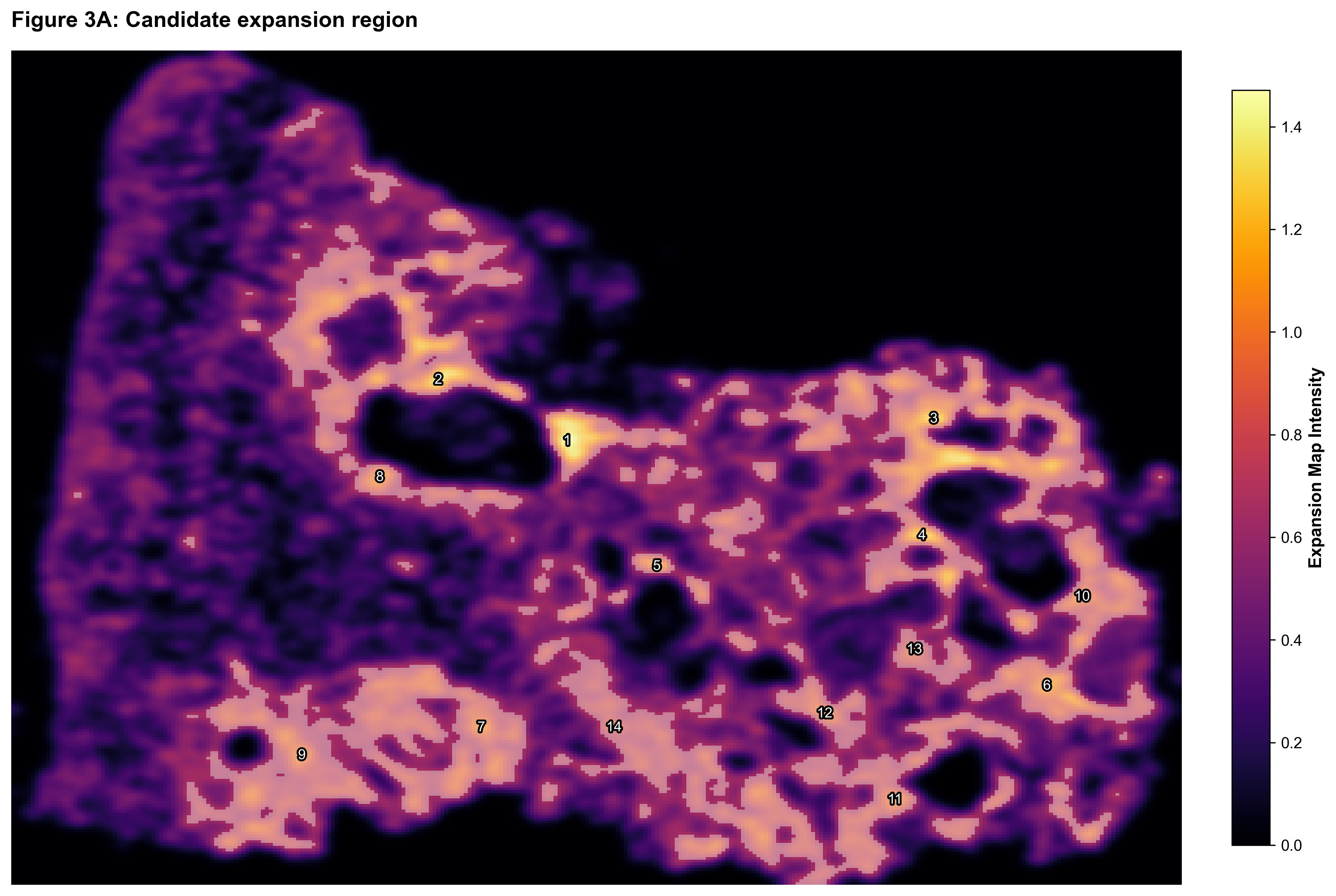

Figure saved to F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\ECM_score\Figure_3A_Candidate_expansion_region.png
[Watershed] Niche count: 14

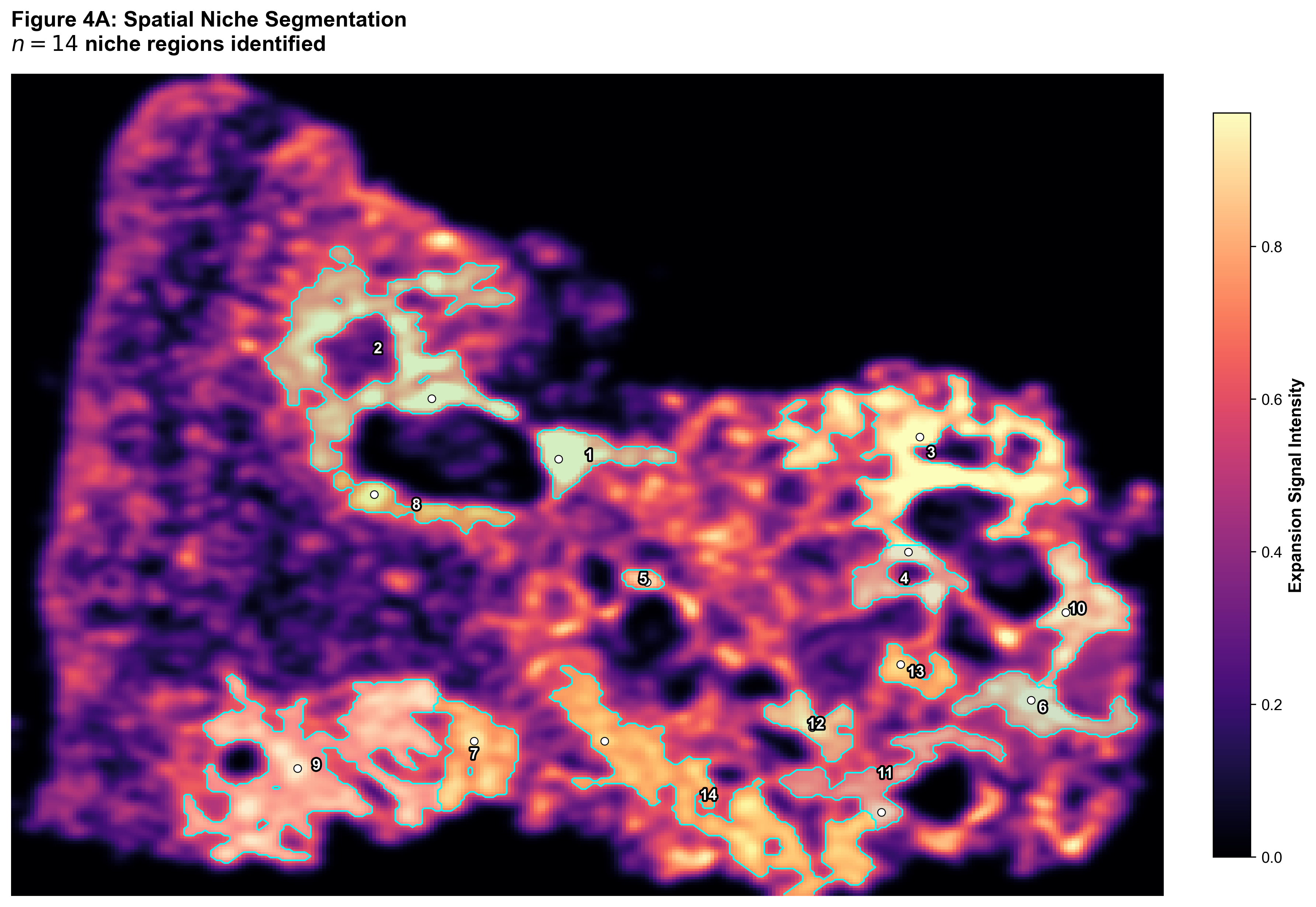

Figure saved to F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\ECM_score\Figure_4A_Spatial_Niche_Segmentation.png
[ECM_score] Mapping niche labels to cells and exporting results
[Assign] ECM_score_niche_id
ECM_score_niche_id
0     57110
9      6523
3      4624
2      3423
14     3045
Name: count, dtype: int64
Computing vector boundaries for niche sketching...
Computing niche centroids for in situ labeling...

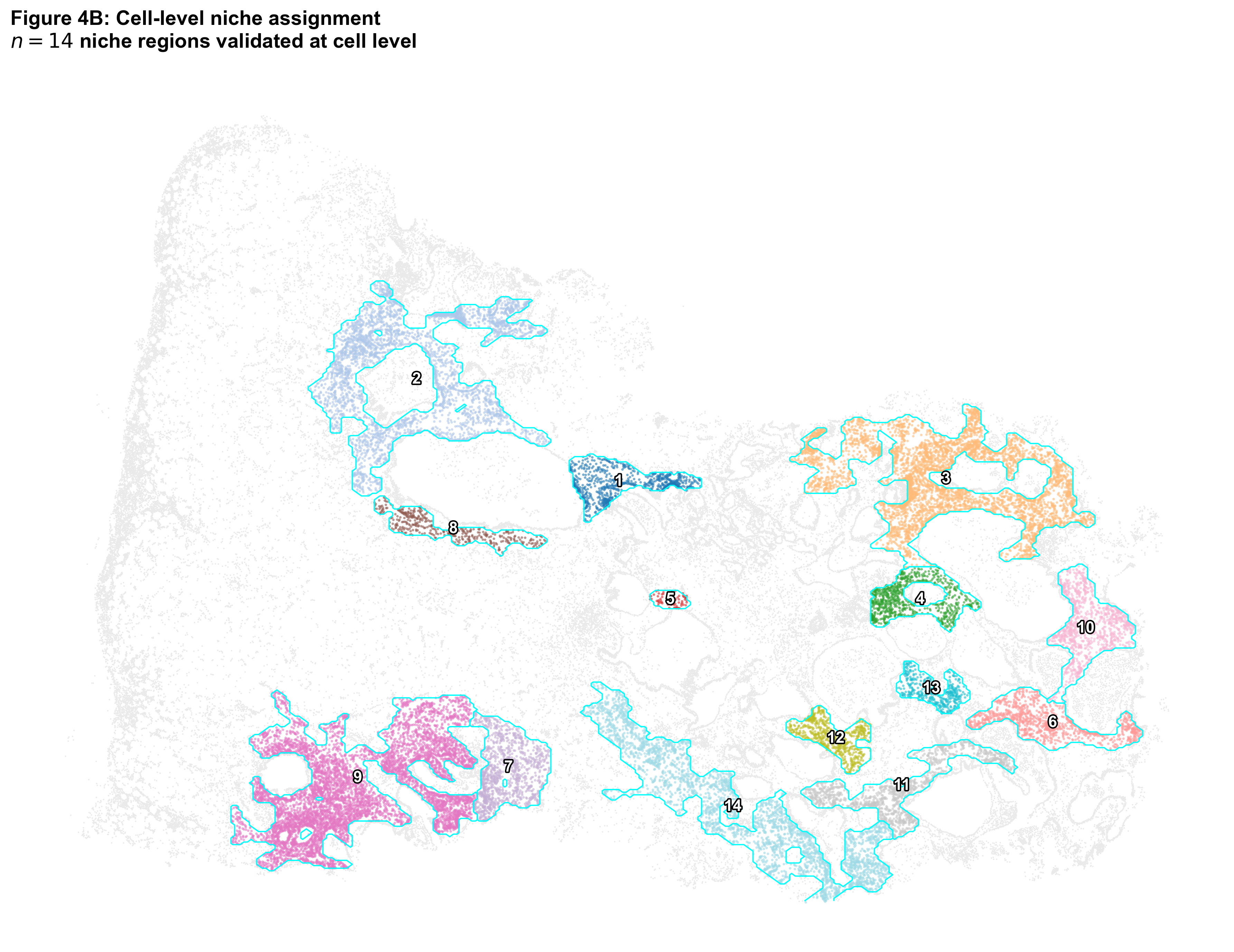

Figure saved to F:\spatial_data_lung\Xenium_Result_data\SSc_1_1_2_result\ECM_score\Figure_4B_Cell-level_niche_assignment.png
[Export] Assigned: 25114/82224
========== Finished NicheMap Pipeline: SSc_1_1_2 ==========
